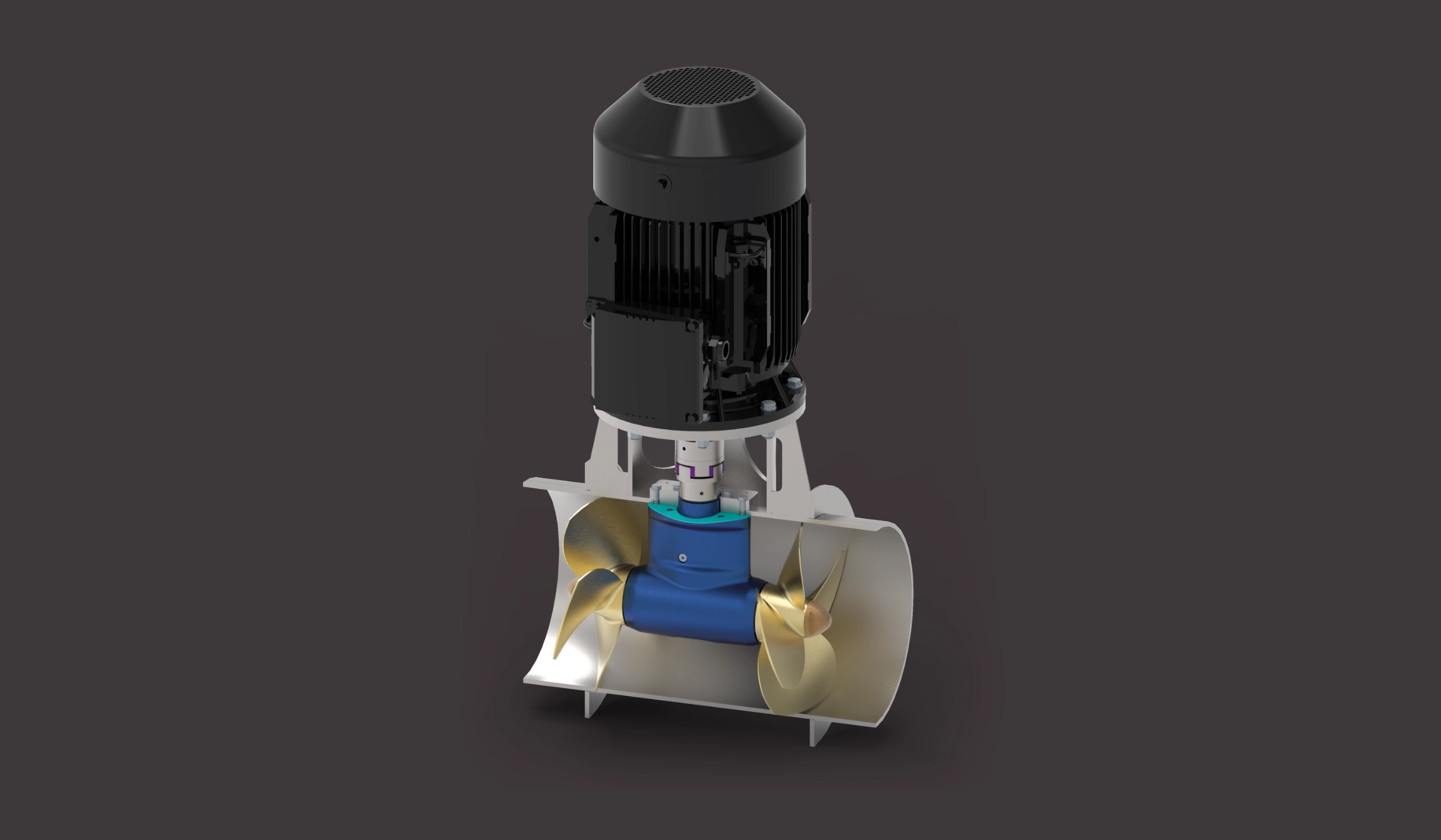

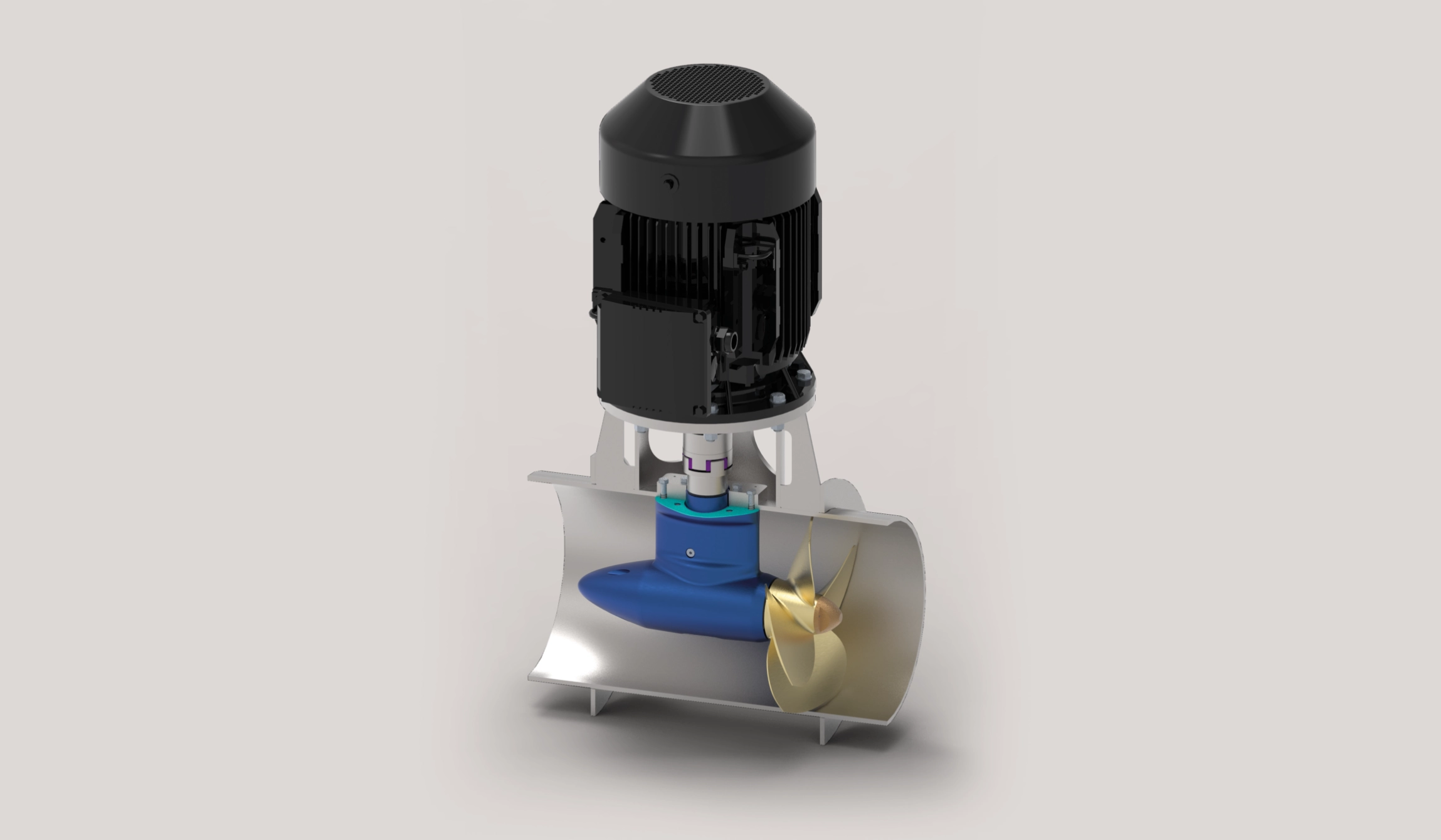

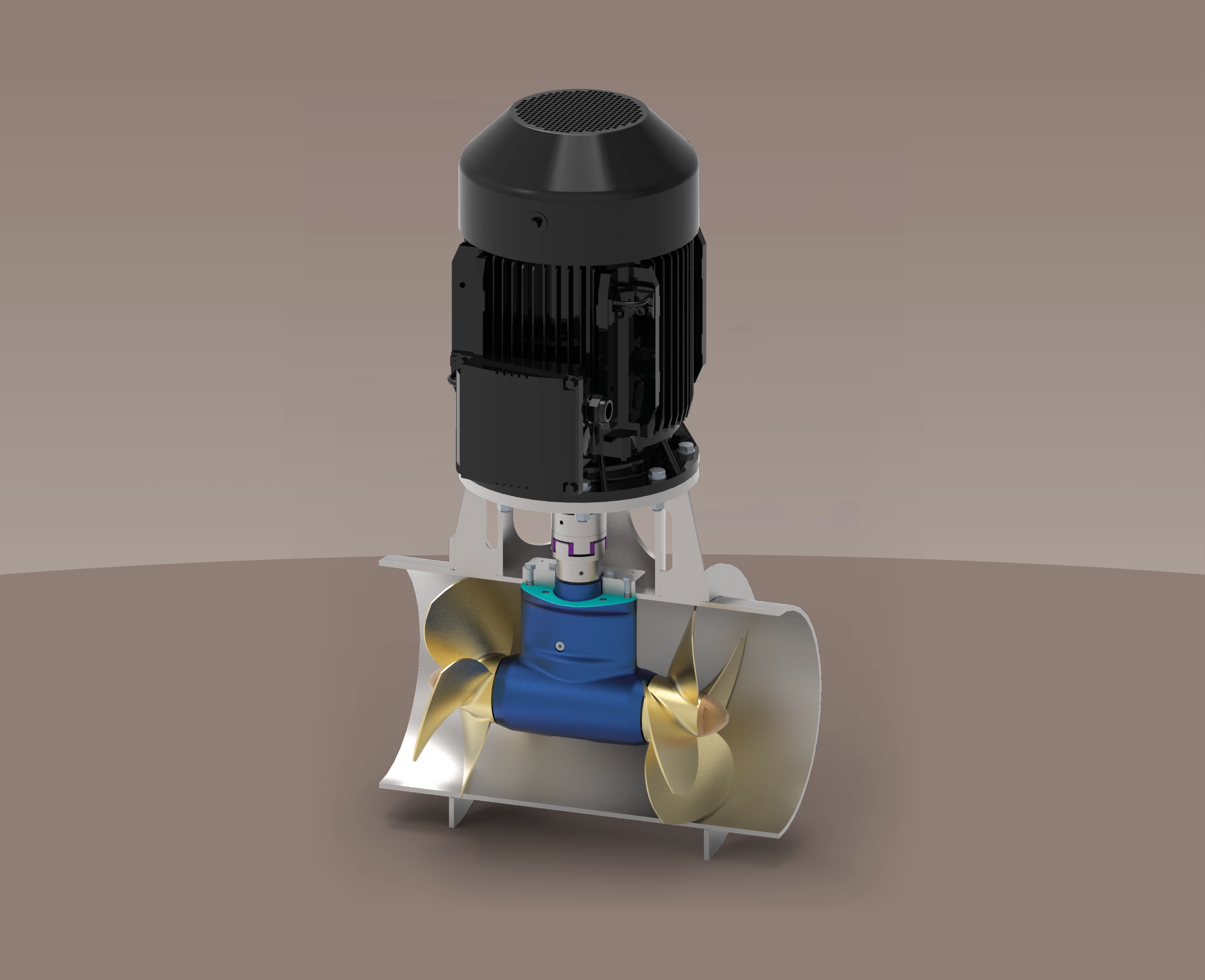

Tunnel Thruster
For safe and easy mooring, support during fishing or dredging and operation under dynamic positioning, tunnel thrusters are a good technical and economical solution.
Read more
Technical information
Single Propeller
| Type | Power | Est thrust | Prop Diam | OD tube | |
| kW | kN | mm | inch | mm | |
| CMT35S | 35 | 4,7 | 375 | 16 | 406,4 |
| CMT45S | 45 | 6,1 | 425 | 18 | 457 |
| CMT55S | 55 | 7,5 | 475 | 20 | 508 |
| CMT75S | 75 | 10,5 | 575 | 24 | 610 |
| CMT100S | 100 | 15,5 | 775 | 32 | 813 |
| CMT150S | 150 | 21,9 | 875 | 36 | 914 |
| CMT200S | 200 | 28,8 | 975 | 40 | 1016 |
| CMT300S | 300 | 40,3 | 1075 | 44 | 1120 |
Counter Rotating Propellers
| Type | Power | Est thrust | Prop Diam | OD tube | |
| kW | kN | mm | inch | mm | |
| CMT45CR | 45 | 6,2 | 375 | 16 | 406,4 |
| CMT55CR | 55 | 7,6 | 425 | 18 | 457 |
| CMT75CR | 75 | 10,1 | 475 | 20 | 508 |
| CMT100CR | 100 | 14,0 | 575 | 24 | 610 |
| CMT150CR | 150 | 22,3 | 775 | 32 | 813 |
| CMT200CR | 200 | 26,8 | 875 | 36 | 914 |
| CMT300CR | 300 | 40,8 | 975 | 40 | 1016 |
| CMT400CR | 400 | 52,9 | 1075 | 44 | 1120 |
Need a custom configuration?
Propulsion systems are available in multiple power ratings and can be customised to meet your vessel's operational requirements.
Need a custom configuration? Contact our engineering team
Contact
Optimizing
performance
Maximum Propeller Efficiency
Current Motion thrusters are designed to accommodate a large propeller diameter, maximising efficiency at low vessel speeds. Thanks to the electric drive and carefully selected gear ratios, the thruster can also run at maximum load with a smaller propeller, since the drive line is engineered to keep the propeller operating within its most efficient range, regardless of diameter.
Low-Noise Operation
To minimise sound levels, Current Motion uses a pulling propeller (tractor) configuration, which creates an optimal wake field ahead of the propeller. This means the propeller can be designed purely for maximum efficiency, without compromises to the blade design to compensate for a disturbed wake field.
Product features
Noise reduction
Quiet and durable gearcase with Klingelenberg Zyklo Palloid type bevel gears, designed with KISSsoft software.
Flexible solution
Easy plug-and-play systems. Multiple options.
Optimal comfort
Optional with air injection for optimal comfort (10 to 15 dB noise reduction)
Need advice on the right azimuth thruster?
Choosing the right thruster depends on your vessel, operating profile and performance requirements. Our team helps you determine the best configuration for your application.
